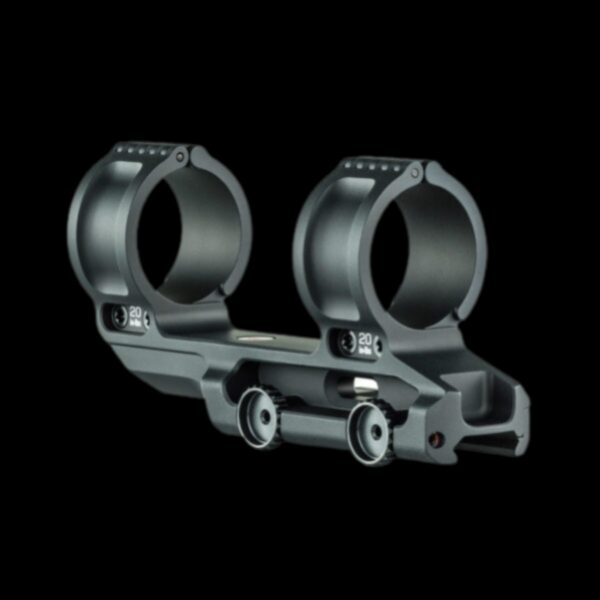

Scalarworks LEAP/09 34mm Rings
$439.00 – $2,999.00
State of the art 34mm scope mounts.
Designed for shooters who want the lightest, stiffest, and easiest to use quick-detach scope mount possible.
LevelDrive™
An integrated set-screw lets you square your scope with your mount in record time.
Side KICK
Supercharge your sighting system by adding a reflex sight in the optimal offset position.
LIGHT MADE RIGHT
Engineered to be the lightest QD scope mount, without compromising an ounce of strength.
SMART STRUCTURE
The Scalarworks LEAP/09 base incorporates different structural elements to maximize overall performance.
A large diameter tubular section up front to resist torsion from side impacts, and a very wide I-beam bridge in the rear to resist recoil induced oscillations.
Every Scalarworks Leap mount is CNC milled from 7075-T6 Aluminum billet, which has vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations.
ViseRing™
Designed from the ground up to be lighter, lower-profile, and easier to use than traditional split rings.
A low-profile design doesn’t get in your way of viewing or manipulating your scope’s adjustment turrets.
A high-strength, multi-link hinge eliminates the uncertain and tedious setup required by split rings.
SMOOTH IS FAST
Scalarworks LEAP mounts have no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.
ClickDrive™
The world’s most efficient quick-detach mechanism.
A fluted crown requires only the torque from your bare hand to securely clamp the mount onto a rail, and uses the force from a spring-loaded ball-detent to make it completely recoil proof. Return-to-zero is guaranteed as long as the same person takes it on and off.
34mm Ring Mount (1.57″ height)
- Materials 7075-T6 Aluminum / 4140H Steel
- Finishes Type III Anodizing / Flash Nitride
- Center height over rail 1.57″
- Ring diameter 34mm
- Cant 0MOA
- Overhang 2.0″
- Weight 154g
- Origin United States of America
34mm Ring Mount (1.93″ height)
- Materials 7075-T6 Aluminum / 4140H Steel
- Finishes Type III Anodizing / Flash Nitride
- Center height over rail 1.93″
- Ring diameter 34mm
- Cant 0MOA
- Overhang 2.0″
- Weight 165g
- Origin United States of America
Nightforce ATACR 1-8 Bundle (1.57″ height)
- Reticle FC-DMx Reticle / First focal plane
- Optical 1-8X24 / 96.1ft-13.1ft fov / 11.26-3.19mm exit pupil / 3.74″ eye relief
- Adjustments 0.1Mil-Rad / 30Mil-Rad (windage/elevation)
- Length 10.06″
- Center height over rail 1.57″
- Weight 656g
Nightforce ATACR 1-8 Bundle (1.93″ height)
- Reticle FC-DMx Reticle / First focal plane
- Optical 1-8X24 / 96.1ft-13.1ft fov / 11.26-3.19mm exit pupil / 3.74″ eye relief
- Adjustments 0.1Mil-Rad / 30Mil-Rad (windage/elevation)
- Length 10.06″
- Center height over rail 1.93″
- Weight 765g
Vortex Razor HD Gen3 1-10 Bundle (1.57″ height)
- Reticle EBR-9 (MRAD) Reticle / First focal plane
- Optical 1-10X24 / 116-11.7ft fov / 3.60″ eye relief
- Adjustments 0.1Mil-RAD/Click – 30Mil-Rad (windage/elevation)
- Length 10.1″
- Center height over rail 1.57″
- Weight 770g
Vortex Razor HD Gen3 1-10 Bundle (1.93″ height)
- Reticle EBR-9 (MRAD) Reticle / First focal plane
- Optical 1-10X24 / 116-11.7ft fov / 3.60″ eye relief
- Adjustments 0.1Mil-RAD/Click – 30Mil-Rad (windage/elevation)
- Length 10.1″
- Center height over rail 1.93″
- Weight 778g
34mm Ring Mount (1.57″ height)
- Rails MIL-STD-1913 Picatinny*
- Optics Most 34mm scopes. See technical drawing for details
34mm Ring Mount (1.93″ height)
- Rails MIL-STD-1913 Picatinny*
- Optics Most 34mm scopes. See technical drawing for details
Nightforce ATACR 1-8 Bundle (1.57″ height)
- Rails MIL-STD-1913 Picatinny*
Nightforce ATACR 1-8 Bundle (1.93″ height)
- Rails MIL-STD-1913 Picatinny*
Vortex Razor HD Gen3 1-10 Bundle (1.57″ height)
- Rails MIL-STD-1913 Picatinny*
Vortex Razor HD Gen3 1-10 Bundle (1.93″ height)
- Rails MIL-STD-1913 Picatinny*
34mm Ring Mount (1.57″ height)
- Mount Scalarworks® Leap™ (SW0910)
- Leveling system LevelDrive™ screw
- Fasteners M4x0.75 Nylok® treated (Torqued @ 20in*lbs)
- Drivers T25 Torx driver bit
- Manuals Scalarworks® Leap/09
34mm Ring Mount (1.93″ height)
- Mount Scalarworks® Leap™ (SW0920)
- Leveling system LevelDrive™ screw
- Fasteners #10-32×0.61″ Nylok® treated
- Drivers T25 Torx driver bit
- Manuals Scalarworks® Leap/09
Nightforce ATACR 1-8 Bundle (1.57″ height)
- Mount Scalarworks® Leap™ (SW0910) – Leveled/attached to scope
- Optic Nightforce ATACR 1-8×24 F1 (C653)
- Accessories Power Throw Lever /Tenebrex flip caps (installed)
- Battery CR2032 lithium (installed)
- Leveling system LevelDrive™ screw
- Fasteners #10-32×0.61″ Nylok® treated (Torqued @ 25in*lbs)
- Drivers T25 Torx driver bit
- Extras Nightforce Wrench / Lens Cloth
- Manuals Scalarworks® Leap/09 & Nightforce ATACR
Nightforce ATACR 1-8 Bundle (1.93″ height)
- Mount Scalarworks® Leap™ (SW0920) – Leveled/attached to scope
- Optic Nightforce ATACR 1-8×24 F1 (C653)
- Accessories Power Throw Lever /Tenebrex flip caps (installed)
- Battery CR2032 lithium (installed)
- Leveling system LevelDrive™ screw
- Fasteners #10-32×0.61″ Nylok® treated (Torqued @ 25in*lbs)
- Drivers T25 Torx driver bit
- Extras Nightforce Wrench / Lens Cloth
- Manuals Scalarworks® Leap/09 & Nightforce ATACR
Vortex Razor HD Gen3 1-10 Bundle (1.57″ height)
- Mount Scalarworks® Leap™ (SW0910) – Leveled/attached to scope
- Optic Vortex RAZOR® HD GEN III 1-10×24 (RZR-11002)
- Battery CR2032 lithium (installed)
- Leveling system LevelDrive™ screw
- Fasteners #10-32×0.61″ Nylok® treated (Torqued @ 25in*lbs)
- Drivers T25 Torx driver bit
- Extras Vortex Stickers / Wrench / Lens Cloth
- Manuals Scalarworks® Leap/09 & Vortex Razor
Vortex Razor HD Gen3 1-10 Bundle (1.93″ height)
- Mount Scalarworks® Leap™ (SW0920) – Leveled/attached to scope
- Optic Vortex RAZOR® HD GEN III 1-10×24 (RZR-11002)
- Battery CR2032 lithium (installed)
- Leveling system LevelDrive™ screw
- Fasteners #10-32×0.61″ Nylok® treated
- Drivers T25 Torx driver bit
- Extras Vortex Stickers / Wrench / Lens Cloth
- Manuals Scalarworks® Leap/09 & Vortex Razor
